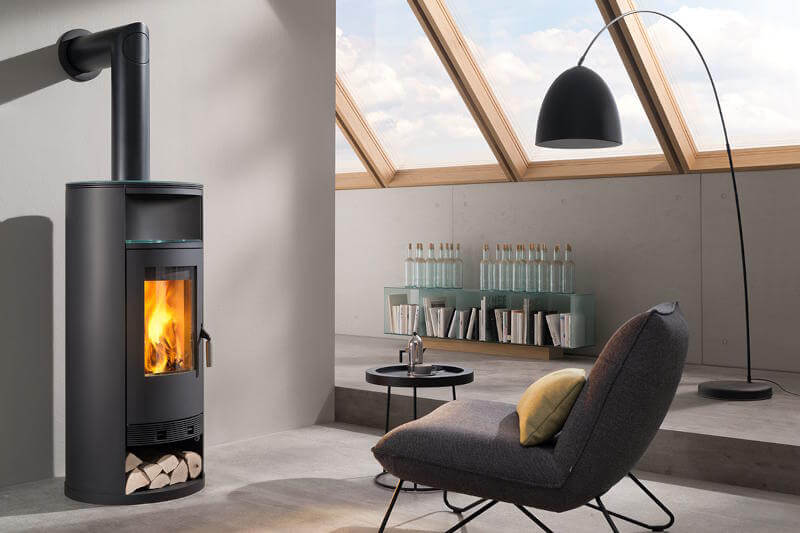

The wodtke Momo water+ is a water-bearing stove for the living room. Thanks to its water heat exchanger, it can be connected to the central heating system, making it ideal as additional heating in combination with solar or heat pump.
At the same time, it generates pleasant radiant heat at its place of installation in the living area.
The air control system from wodtke regulates the flow of combustion air in the stove for an optimal combustion process. The operation of slides and flaps is completely dispensed with. This significantly increases the ease of use on the stove and operating errors are ruled out. Only regular replenishment of firewood is necessary.
The Momo water+ has a nominal heat output of 8kW.
The top decorative panel is available in soapstone or glass.
A buffer tank (at least 500 liters) is required!
Please select the desired decorative panel.
Delivery only within Germany.
Delivery is free of charge by forwarding agent directly from the manufacturer free curb.
Delivery time: approx. 1-4 weeks
Please inquire about the exact delivery time.
Delivery only within Germany.
Couldn't load pickup availability
Characteristics
Characteristics
- Decorative panel in soapstone or glass.
- Storage compartment in the base with control levers and fuel selector for wood or lignite briquettes.
- Large, insulated water heat exchanger with approx. 21l content.
- Easy cleaning of the diversions in the heat exchanger (accessible via an inspection door).
- Safety technology against overheating (thermal safety device).
- Thermal discharge safety device, immersion sleeve, air vent, fill and drain valve are integrated in the furnace.
- LED light (optional) indicates in good time when the required buffer tank (at least 500 liters) has heated up sufficiently.
- AWS washer wash.
- Combustion chamber lining with proven vermiculite.
- Durable solid cast iron fire grate.
- Large ash pan for convenient ash removal.
Technical data
Technical data
- 2nd stage of the 1st BImSchV fulfilled.
- Nominal heat output 8kW.
- Energy efficiency class: A+
(Energy efficiency classes ranging from A++ to G). - Heat exchanger with 21L water content.
- Space heating capacity according to DIN 18893 from 73m³ to 186m³.
- Fuel: wood and brown coal briquette.
- CO content in exhaust gas < 0.12% vol.
- Exhaust gas temperature 175°C.
- Exhaust mass flow 7.5 g/s.
- Necessary delivery pressure (chimney draft) 12 PA.
- Type 1 - multiple occupancy possible.
- Tested according to EN 13240 and Art. 15a B-VG.
- Flue pipe connection upwards Ø 150mm.
- Connection for combustion air line Ø 100mm.
- weight 213kg (with decorative plate glass); 221kg (with decorative plate soapstone)
Dimensions
Dimensions
Width: 55cm
Depth: 55cm
Height: 124cm
You can download the detailed dimensional drawing on this page.
